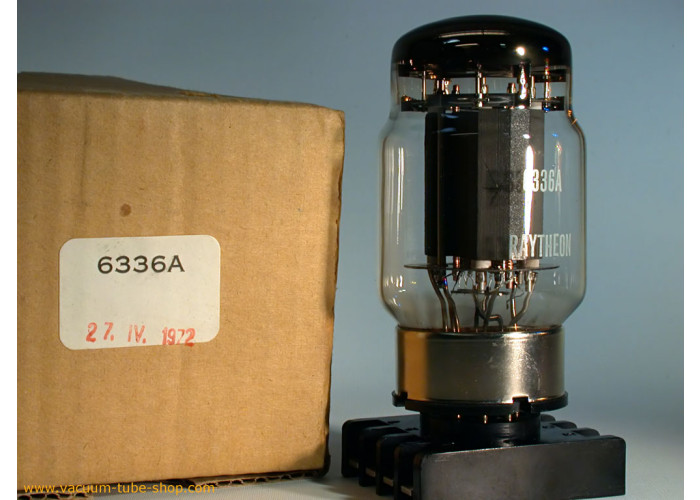

6336A Raytheon USA - nos tube

6336A Raytheon USA - nos tube

Heavy-duty double triode. Massive anode structure is formed out of graphite. Good valve for Push-Pull single tube amps, or Single End stereo amps, ( only one power tube needed ). It has the same base connection as the 6080. The 6336A can replace 2 or 3 type 6080 tubes. Va max.= 400V, Pa= 30W, S= 13.5mA/V. This valve is triple mica type. Additional mica is placed between the upper mica and getter. This will reduce getter material contamination on upper mica iwhen the getter is made. This conductive contamination is sometimes the reason for destruction in a power valve.

Key specifications

• Tube model: 6336a
• Base / socket: OCTAL (Octal)
• Heater: 6.3 V / 5.0 A
• Max anode (plate) voltage (Va max): 400 V
• Max plate dissipation (Pa max): 30 W

Links & datasheets

• Valve Museum / r-type exhibit
• Radiomuseum tube page
• R-type PDF datasheet

Technical data and equivalence information are compiled from public sources and may contain errors. Always verify suitability and ratings from original manufacturer datasheets before use.

NOS tubes are stored in our external warehouse. Most NOS tubes are therefore not available for immediate pickup from our physical shops. Please allow an additional 2–5 business days for delivery.
