6AQ5 (=EL90, 6005W, 6928, 6AQ5L) RCA USA - nos tube

6AQ5 (=EL90, 6005W, 6928, 6AQ5L) RCA USA - nos tube

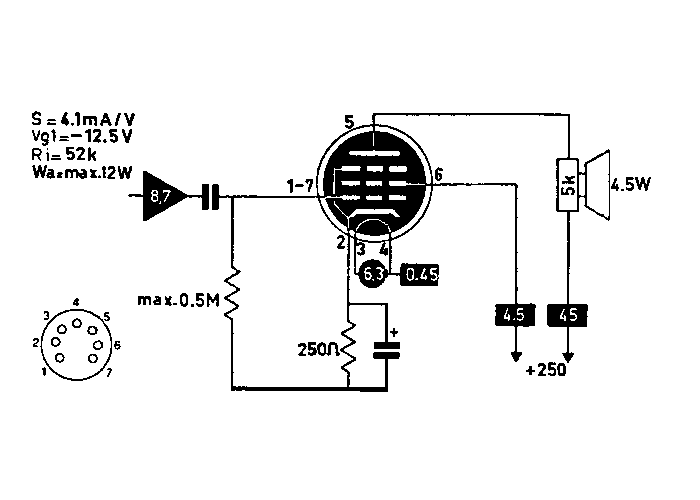

The 6AQ5 is a small audio output beam tetrode valve capable of 4.5 W audio power in a single ended. Similar to EL 90. 6P1P-EV is a similar item with a noval base.

Key specifications

• Tube model: 6aq5
• Close or identical: BPM04 , CK6005 , CV1862 , CV8229 , EL90 , M8245 , N727
• Different rating or performance: 6005 , 6095 , 6669 , 6AQ5A , 6AQ5W , 6BM5 , 6L31 , CV3972 , CV4019 , CV5190
• Base / socket: B7G (7-pin miniature)
• Heater: 6.3 V / 0.45 A

Links & datasheets

• Valve Museum / r-type exhibit
• Valve Museum / r-type exhibit
• Valve Museum / r-type exhibit
• Valve Museum / r-type exhibit
• Radiomuseum tube page
• R-type PDF datasheet

Technical data and equivalence information are compiled from public sources and may contain errors. Always verify suitability and ratings from original manufacturer datasheets before use.

NOS tubes are stored in our external warehouse. Most NOS tubes are therefore not available for immediate pickup from our physical shops. Please allow an additional 2–5 business days for delivery.
