6CH6 (=CV4055, EL821) Brimar England - nos tube
| UralTone HELSINKI | 22 kpl varastossa |
6CH6 (=CV4055, EL821) Brimar England - nos tube

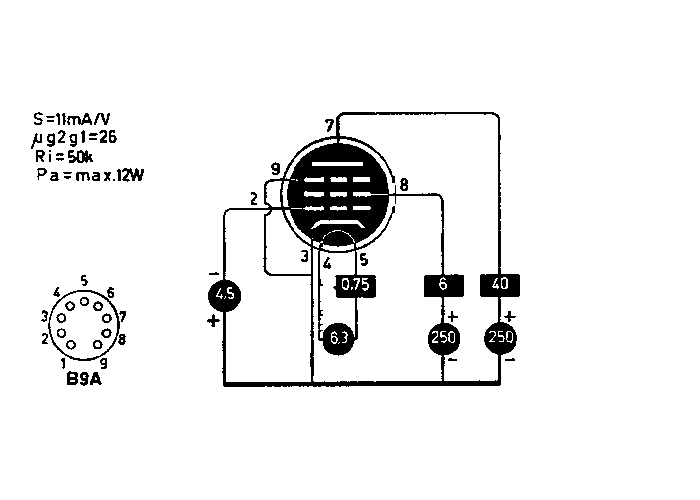

This valve was used as an audio output valve and video output amplifier in professional applications. The 6CH6, CV4055 and EL821 are near equivalents to the EL84 but they are longer life and more reliable. EL84 has a slightly different pin out. Va max = 275V. Vg2 max = 275V, Pa max.= 12W, Pg2 max.= 2.5W, Ik max.= 60mA, S= 11mA/V. Transformers designed for EL84 can be used.
Key specifications
- Tube model: 6ch6
- Close or identical: CV2127 , CV8045 , CV9331 , EL821
- Different rating or performance: EF82
- Base / socket: B9A (Noval (9-pin))
- Heater: 6.3 V / 0.75 A
Links & datasheets
Technical data and equivalence information are compiled from public sources and may contain errors. Always verify suitability and ratings from original manufacturer datasheets before use.
NOS tubes are stored in our external warehouse. Most NOS tubes are therefore not available for immediate pickup from our physical shops. Please allow an additional 2–5 business days for delivery.
| Tuotekoodi | VCS-6CH6-Brimar |
|---|---|
| Barcode | 5512777093499 |
| Valmistaja | Brimar |
| Kunto (vain NOS putket) | NOS |
| tube_model | 6ch6 |
| tube_model2 | 6CH6 |
| tube_country | England |
| tube_ih_a | 0.75 |
| tube_vh_v | 6.3 |
| tube_close_or_identical | CV2127 , CV8045 , CV9331 , EL821 |
