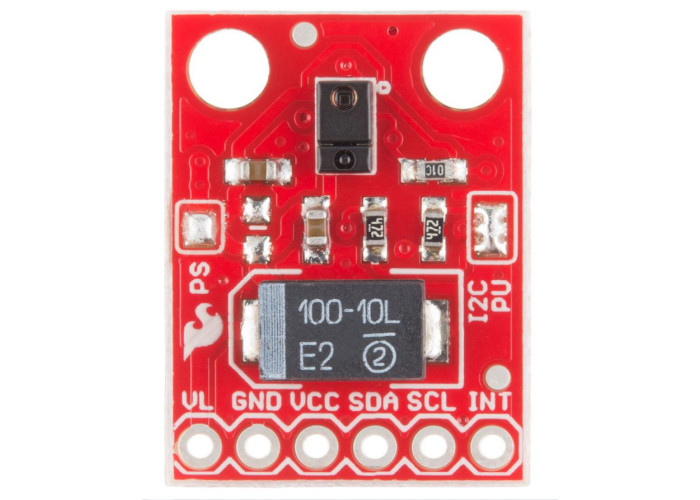

CJMCU-9960 APDS-9960 RGB and Gesture Sensor

CJMCU-9960 APDS-9960 RGB and Gesture Sensor. Käytetään mm. Liikkeen, RGB värien, etäisyyksien tunnistamiseen. HUOMAA KÄYTTÖJÄNNITEALUE ! Tarkoitettu 3.3V logiikalle.

VL Optional power to the IR LED if PS jumper is disconnected. Must be 3.0 - 4.5V
GND Connect to ground.
VCC Used to power the CJMCU-9960 sensor. Must be 2.4 - 3.6V
SDA I2C data
SCL I2C clock
INT External interrupt pin. Active LOW on interrupt event

Ambient Light and RGB Sensing, Proximity Sensing, and Advance Gesture Detection.
Operating Voltage: 2.4V to 3.6V.
Operating current: 0.2mA.
Communication protocol: 400KHz
Highly sensitive Ambient and RGB sensing through UV and IR blocking filters.
For gesture sensing there are four photodiodes, which are sensitive to different to next directions so that it can detect complex gestures easily.
