ECC83 (=E83CC, 12AX7, 5751, 6N2P-EV) Telefunken Germany - nos tube

ECC83 (=E83CC, 12AX7, 5751, 6N2P-EV) Telefunken Germany - nos tube

Smooth Plate. They have a diamond logo between the pins.

Key specifications

• Tube model: ecc83
• Close or identical: 12AX7 , 12AX7R , CV10319 , CV492
• Different rating or performance: 12AX7A , 12AX7S , 12AX7WA , 5751 , 5751WA , 6057 , 6681 , 6L13 , 7025 , 7382 , 7494 , 7729 , B339 , CK5751 , CV4004 , CV4017 , CV8156 , CV8222 , CV8312 , E2164 , E83CC , ECC803 , ECC803S , ECC863 , M8137 , QB339
• Different filament voltage: 20EZ7 , 6AX7

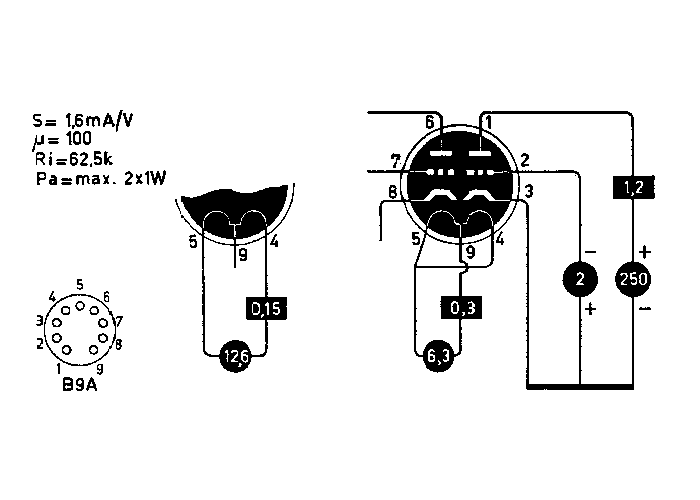

• Base / socket: B9A (Noval (9-pin))
• Heater: 6.3;12.6 V / 0.3;0.15 A
• Max anode (plate) voltage (Va max): 300 V
• Max plate dissipation (Pa max): 1 W
• Max heater-cathode voltage (Vhk max): 180 V
• Max cathode current (Ik max): 8 mA

Links & datasheets

• Valve Museum / r-type exhibit
• Valve Museum / r-type exhibit
• Radiomuseum tube page
• R-type PDF datasheet

Technical data and equivalence information are compiled from public sources and may contain errors. Always verify suitability and ratings from original manufacturer datasheets before use.

NOS tubes are stored in our external warehouse. Most NOS tubes are therefore not available for immediate pickup from our physical shops. Please allow an additional 2–5 business days for delivery.
