ECL82 (=6F3P, PCL82, 8B8, 6BM8) Philips Holland - nos tube
45,00 €
35,86 €
Varastossa
Tuotekoodi
VCS-ECL82-Philips
| UralTone HELSINKI | 26 kpl varastossa |
ECL82 (=6F3P, PCL82, 8B8, 6BM8) Philips Holland - nos tube
PCL82 is a similar valve. The filament voltage for PCL82 is 16V.

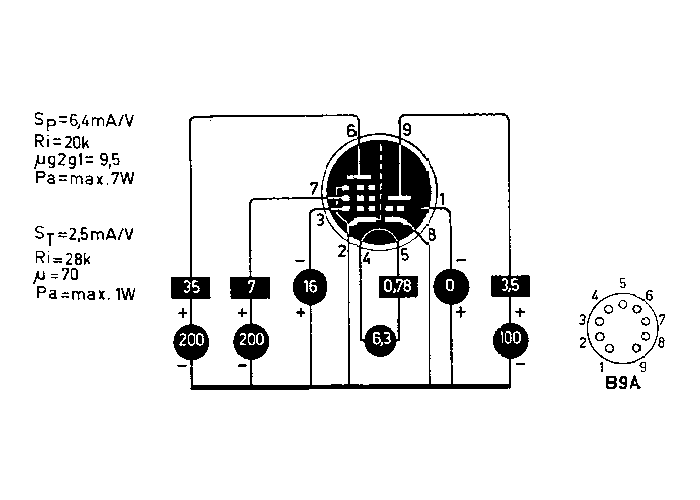

Key specifications
- Tube model: ecl82
- Close or identical: 6BM8 , 6PL12 , CV9167
- Different filament voltage: CV10726 , PCL82 , UCL82
- Base / socket: B9A (Noval (9-pin))
- Heater: 6.3 V / 0.78 A
Links & datasheets
Technical data and equivalence information are compiled from public sources and may contain errors. Always verify suitability and ratings from original manufacturer datasheets before use.
NOS tubes are stored in our external warehouse. Most NOS tubes are therefore not available for immediate pickup from our physical shops. Please allow an additional 2–5 business days for delivery.
| Tuotekoodi | VCS-ECL82-Philips |
|---|---|
| Barcode | 5517286102199 |
| Valmistaja | Philips |
| Kunto (vain NOS putket) | NOS |
| tube_model | ecl82 |
| tube_model2 | ECL82 |
| tube_type | beam tetrode |
| tube_country | Holland |
| tube_ih_a | 0.78 |
| tube_vh_v | 6.3 |
| tube_close_or_identical | 6BM8 , 6PL12 , CV9167 |
