EL95 (=6DL5) Telefunken West Germany - nos tube

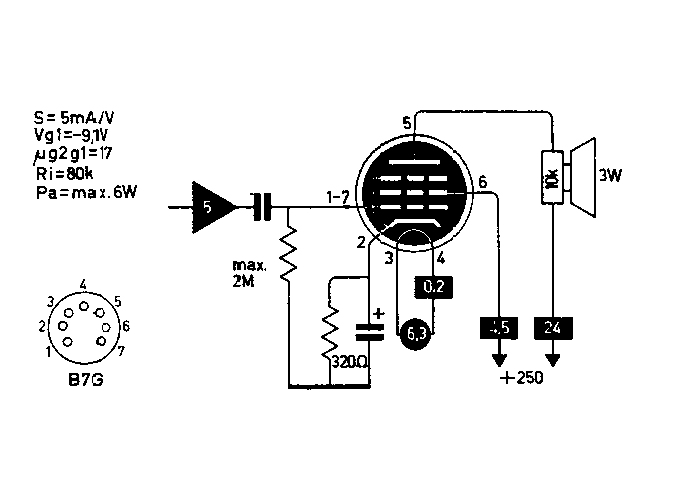

The EL95 is an output pentode for low power audio amplifiers. B7G base. Diamond bottom.
Key specifications
- Tube model: el95
- Close or identical: 6DL5 , CV8458
- Base / socket: B7G (7-pin miniature)
- Heater: 6.3 V / 0.2 A
Links & datasheets
Technical data and equivalence information are compiled from public sources and may contain errors. Always verify suitability and ratings from original manufacturer datasheets before use.
NOS tubes are stored in our external warehouse. Most NOS tubes are therefore not available for immediate pickup from our physical shops. Please allow an additional 2–5 business days for delivery.
| Tuotekoodi | VCS-EL95-Telefunken |
|---|---|
| Barcode | 5528116340551 |
| Valmistaja | Telefunken |
| Kunto (vain NOS putket) | NOS |
| tube_model | el95 |
| tube_model2 | EL95 |
| tube_type | pentode |
| tube_country | West Germany |
| tube_ih_a | 0.2 |
| tube_vh_v | 6.3 |
| tube_close_or_identical | 6DL5 , CV8458 |
