EZ40 Siemens West Germany - nos tube

EZ40 Siemens West Germany - nos tube

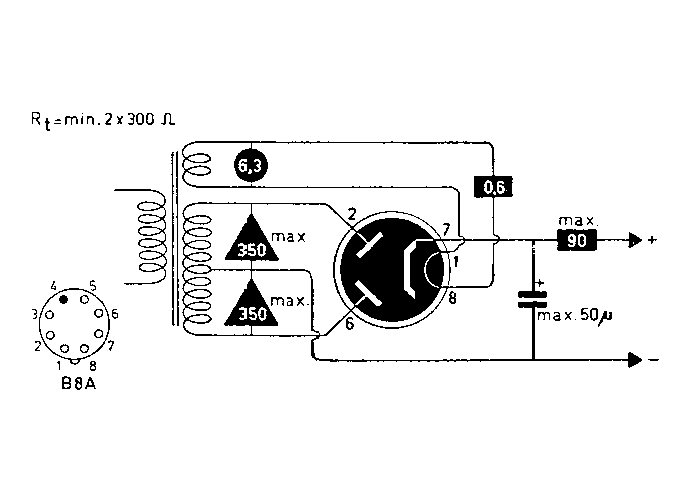

~EZ80. Full-wave rectifier for medium power applications. Near equivalent to the 6X5GT. This type is indirectly heated. Vkf= max. 500V, Vi= 350V RMS, Io= 90mA, Cfilt.= 50uF, Rs= 300R.

Key specifications

• Tube model: ez40
• Close or identical: CV3891 , U150
• Base / socket: B8A (Rimlock (8-pin))
• Heater: 6.3 V / 0.6 A

Links & datasheets

• Valve Museum / r-type exhibit
• Radiomuseum tube page
• R-type PDF datasheet

Technical data and equivalence information are compiled from public sources and may contain errors. Always verify suitability and ratings from original manufacturer datasheets before use.
