Five Cats Pedals - Morningstar Distortion - KIT
| UralTone HELSINKI | 9 kpl varastossa |

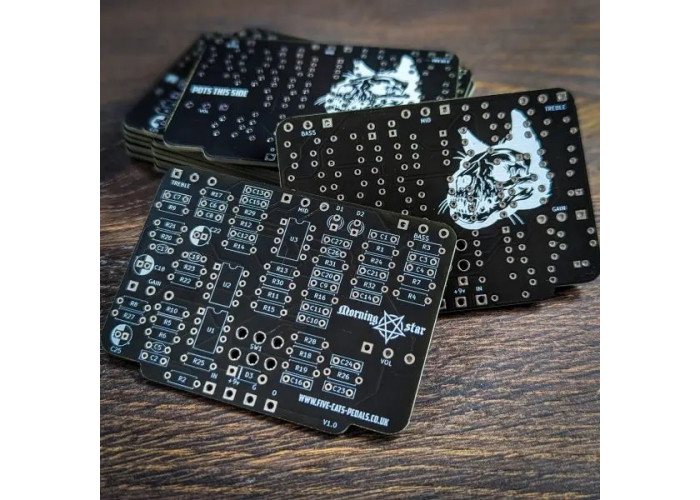

Five Cats Pedals - Morningstar Distortion PCB
The Morningstar Distortion is our take on the Revv G4
You want a thick, saturated distortion? The Morningstar Distortion is for you! Featuring a 3-Band hybrid EQ, built on a Baxandall control for bass and treble, plus an active mid control after volume, making sure you can dial this pedal in any way you want it, yet keeping on the definition you need on each frequency. It's a beast!!
Designed to fit in a 1590BB size enclosure - fitting 5 pot and a toggle in a 1590b just adds to the DIY challenge!
Controls:
- Volume
- Gain
- Treble
- Mid
- Bass
- Character (toggle switch) – (Tight / Classic / Fat)
Note: Remember to socket any IC's and transistors.
Compares to: Revv G4
Interactive B.O.M Morningstar Distortion – Interactive B.O.M (.zip download)
Schematic Morningstar Distortion - V1.0 - Schematic
Build Docs Morningstar Distortion – V1.0 – Build Docs
UralTone BOM UralTone BOM
Enclosure 1590BB (not included)
Includes all the components from the UralTone BOM EXCEPT enclosure!
Component list is copied from the manufacturer's BOM UralTone has not tested or built this kit.
Technical support via the manufacturer.
Please note: Enclosure should be ordered separately.
| Tuotekoodi | 5C-MORNINGSTAR-DISTORTION |
|---|---|
| Barcode | 9900000358921 |
| Valmistaja | FIVE CATS PEDALS |
