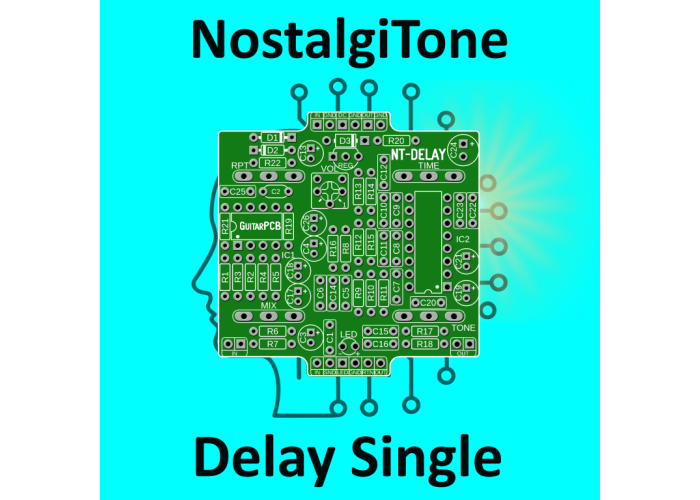

Guitar PCB - NostalgiTone Delay Single - KIT

Guitar PCB - NostalgiTone Delay Single

NostalgiTone Delay: The NostalgiTone Delay is an advanced circuit offering an intuitive four-knob control layout, allowing precise adjustments for Time, Repeats, Tone, and Mix. Additionally, an internal trimmer pot provides a set-and-forget option for overall volume control. Effortlessly dial in anything from crisp, short slapback echoes to expansive, Gilmour-style delays. With a maximum delay time of 600 milliseconds, this pedal delivers rich, organic sound with analog warmth, ensuring a smooth and natural delay response.

Easy Wiring: No more daunting wiring hassles! Say hello to beauty under the hood. Enjoy all-analog tones with modern features that will slip into your gig bag, ensuring you are always ready to unleash your musical magic.

Available Components: We recognize the hurdles of component availability. Rest assured, we’ve carefully selected components for the NostalgiTone series currently available from today’s popular vendors.

• NostalgiTone Delay
• Mainboard Dimensions – 2.10” x 2.12” – Perfectly sized for a 1590B or 125B enclosures.
• Included with each PCB purchase. – (1) Mainboard, (1) wiring board, and (1) ribbon cable.

BUILD DOCS:

• Build documents

UralTone BOM UralTone BOM

Enclosure 1590B (not included)

Includes all the components from the UralTone BOM EXCEPT enclosure!

Component list is copied from the manufacturer's BOM UralTone has not tested or built this kit.

Technical support via the manufacturer.

Please note: Enclosure should be ordered separately.
